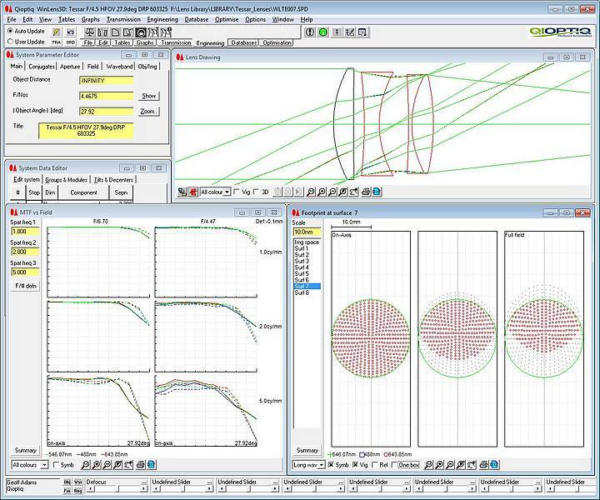

Software Package WinLens 3D

The software package can be used for PCs running Microsoft Windows and consists of four parts:

• WinLens 3D
• Tolerancer
• Glass Manager
• Material Editor

To use the software package WinLens 3D a licence is required, which you receive by ordering this product. The following programs are available as freeware at www.winlens.de: WinLens 3D Basic, PreDesigner, Lens Library.

• Software for professional optical design
• Ideal tool for developing components and systems
• Meaningful charts and tables for analysing optical systems
• Suitable both for our components (lenses, achromatic lenses, prisms, etc.) and for customer-specific components and systems
• Powerful optimisation routine using relative defects
• Comprehensive engineering features
• Simulations of on-axis and folded systems
• For tolerancing the construction parameters of optical on-axis systems
• Statistical analysis of production tolerances
• Analyse the sensitivity of individual parameters
• Ideal tool for development and production of optical systems; can help reduce costs
• Create ISO 10110 drawings with a highly flexible editor

Configured per application and quoted within one working day by Vadeno Optical Solutions, Apeldoorn.
