Excelitas / LINOS

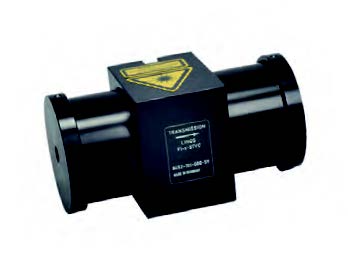

Two-Stage Faraday Isolator, Tunable FI-710-5TVC
On request
Two-stage tunable Faraday isolator for 710 nm, TVC series. Guaranteed isolation of at least 60 dB with transmission above 80 % at the design wavelength, protecting a laser cavity or amplifier chain from back-reflections.
PRICE ON REQUEST
Configured per application and quoted within one working day.
Two-stage tunable Faraday isolator for 710 nm, TVC series. Guaranteed isolation of at least 60 dB with transmission above 80 % at the design wavelength, protecting a laser cavity or amplifier chain from back-reflections. Part number 845110100202. Configured per application and quoted within one working day by Vadeno Optical Solutions, Apeldoorn.
Specifications
| Series | TVC |
|---|---|
| Design wavelength | 710 nm |
| Isolation, guaranteed | u2265 60 dB |
| Isolation, typical | u2265 60 dB |
| Transmission at design wavelength | u2265 80 % |
| Damage threshold, 1,2 ps pulses | 0,2 J/cm2 @ 710 nm (1,2 ps) |
| Damage threshold, 8 ns pulses | 0,7 J/cm2 @ 710 nm (8 ns) |
| Aperture | 5 mm |
| Dimensions | 40x40x79 mm |
